HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.
Product Detail

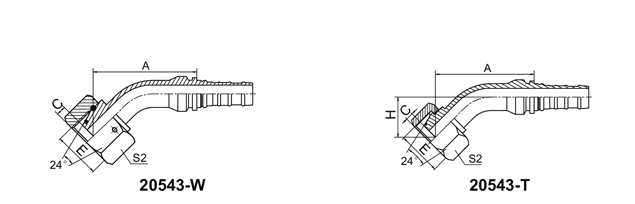

HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.
| PART NO. | THREAD E | HOSE BORE | TUBEO.D. | ORING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20543-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 89.4 | 3 | 33 | 41 |
| 20543-42-16W | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 102.3 | 5 | 35.9 | 50 |
| 20543-52-20T | M52X2 | 32 | 20 | 38 | O33.3X24 | 114.5 | 6.5 | 39.4 | 60 |
