HYDRAULIC 20541C 45°METRIC FEMALE MULTISEAL H.T. (DIN 3868)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20541C 45°METRIC FEMALE MULTISEAL H.T. (DIN 3868)
Product Detail

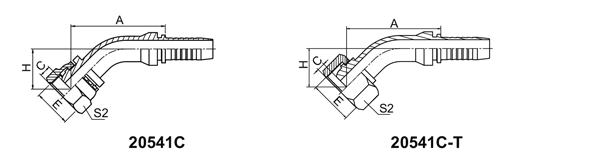

HYDRAULIC 20541C 45°METRIC FEMALE MULTISEAL H.T. (DIN 3868)
| PART NO. | THREAD E | HOSE BORE | TUBEO.D. | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | |||
| 20541C-16-04 | M16X1.5 | 6 | 04 | 8 | 44.8 | 3 | 22_7 | 19 |
| 20541C-18-04T | M18X1.5 | 6 | 04 | 10 | 43.7 | 3 | 21.6 | 22 |
| 20541C-20-06T | M20X1.5 | 10 | 06 | 12 | 48.9 | 4.5 | 24.6 | 24 |
| 20541C-24-08T | M24X1.5 | 12 | 08 | 16 | 61.4 | 2.5 | 26.5 | 30 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 20542C-XX-XX.
