HYDRAULIC 20491C 90°METRIC FEMALE 24°MULTISEAL L.T. (DIN 3868)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20491C 90°METRIC FEMALE 24°MULTISEAL L.T. (DIN 3868)
Product Detail

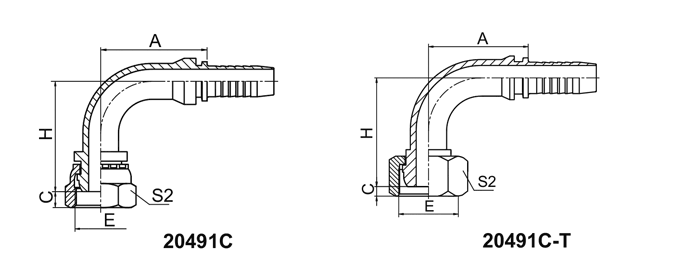

HYDRAULIC 20491C 90°METRIC FEMALE 24°MULTISEAL L.T. (DIN 3868)
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | TUBEO.D. | A | c | H | S2 | ||
| 20491C-14-04 | M14X1.5 | 6 | 04 | 8 | 30 | 3.5 | 39.5 | 19 |
| 20491C-16-04 | M16X1.5 | 6 | 04 | 10 | 30 | 3-5 | 40 | 22 |
| 20491 C-16-05 | M16X1.5 | 8 | 05 | 10 | 33 | 3.5 | 43 | 22 |
| 20491 C-16-06 | M16X1.5 | 10 | 06 | 10 | 35.25 | 3-5 | 45.2 | 22 |
| 20491 C-18-06 | M18X1.5 | 10 | 06 | 12 | 35.25 | 3 | 47.25 | 24 |
| 20491C-22-08 | M22X1.5 | 12 | 08 | 15 | 41 | 4.5 | 53 | 27 |
| 20491C-26-10 | M26X1.5 | 16 | 10 | 18 | 56.5 | 4 | 60 | 32 |
| 20491030-12 | M30X2 | 20 | 12 | 22 | 65.5 | 7 | 68.5 | 36 |
| 20491C-36-12T | M36X2 | 20 | 12 | 28 | 65.5 | 6.5 | 67.5 | 41 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 20492C-XX-XX.
