HYDRAULIC 20491 90°METRIC FEMALE 24°CONE O-RING L.T. (ISO 12151-2--DIN 3865)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20491 90°METRIC FEMALE 24°CONE O-RING L.T. (ISO 12151-2--DIN 3865)
Product Detail

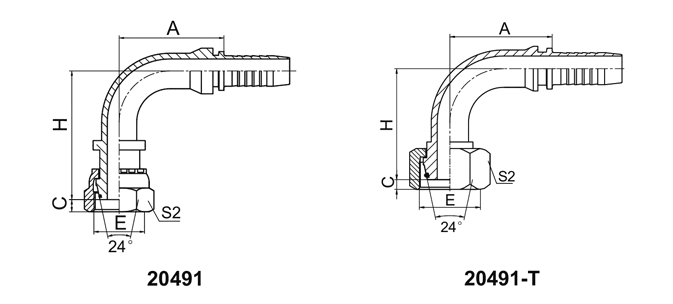

HYDRAULIC 20491 90°METRIC FEMALE 24°CONE O-RING L.T. (ISO 12151-2--DIN 3865)
| PART NO. | THREAD E | HOSE BORE | TUBEO.D. | ORING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20491-12-03 | M12X1.5 | 5 | 03 | 6 | 004.5X1.5 | 26.5 | 1 | 41.5 | 17 |
| 20491-12-04 | M12X1.5 | 6 | 04 | 6 | 004.5X1.5 | 30 | 1 | 44-5 | 17 |
| 20491-14-04 | M14X1.5 | 6 | 04 | 8 | 006.5X1.5 | 30 | 2 | 46 | 19 |
| 20491-16-04 | M16X1.5 | 6 | 04 | 10 | 008.0X1.5 | 30 | 2 | 46.5 | 22 |
| 20491-16-05 | M16X1.5 | 8 | 05 | 10 | 008.0X1.5 | 33 | 2 | 49.5 | 22 |
| 20491-16-06 | M16X1.5 | 10 | 06 | 10 | 008.0X1.5 | 35.3 | 2 | 51.8 | 22 |
| 20491-18-05T | M18X1.5 | 8 | 05 | 12 | 010.0X1.5 | 33 | 2.5 | 42 | 22 |
| 20491-18-06 | M18X1.5 | 10 | 06 | 12 | 010.0X1.5 | 35.3 | 2.5 | 53.3 | 24 |
| 20491-22-06T | M22X1.5 | 10 | 06 | 15 | 012.0X2.0 | 35.3 | 2-5 | 47.3 | 27 |
| 20491-22-08 | M22X1.5 | 12 | 08 | 15 | 012.0X2.0 | 41 | 2-5 | 61 | 27 |
| 20491-26-08T | M26X1.5 | 12 | 08 | 18 | 015.0X2.0 | 42 | 2.5 | 51 | 32 |
| 20491-26-10 | M26X1.5 | 16 | 10 | 18 | 015.0X2.0 | 56.5 | 2.5 | 67.5 | 32 |
| 20491-26-12 | M26X1.5 | 20 | 12 | 18 | 015.0X2.0 | 65.5 | 2-5 | 77 | 32 |
| 20491-27-10T | M27X1.5 | 16 | 10 | 18 | 015.0X2.0 | 56.5 | 2.5 | 67.5 | 32 |
| 20491-27-12 | M27X1.5 | 20 | 12 | 18 | 015.0X2.0 | 65.5 | 2-5 | 77 | 32 |
| 20491-30-10T | M30X2 | 16 | 10 | 22 | 020.0X2.0 | 56.5 | 4 | 57.2 | 36 |
| 20491-30-12 | M30X2 | 20 | 12 | 22 | 020.0X2.0 | 65.5 | 4 | 80 | 36 |
| 20491-36-12T | M36X2 | 20 | 12 | 28 | 026.0X2.0 | 65.5 | 4 | 69 | 41 |
| 20491-36-14T | M36X2 | 22 | 14 | 28 | 026.0X2.0 | 71.2 | 4 | 70 | 41 |
| 20491-45-16T | M45X2 | 25 | 16 | 35 | 032.0X2.5 | 76.7 | 5 | 75 | 55 |
| 20491-45-20T | M45X2 | 32 | 20 | 35 | 032.0X2.5 | 91.5 | 5 | 88.5 | 55 |
| 20491-52-20T | M52X2 | 32 | 20 | 42 | 038.0X2.5 | 93 | 5.5 | 87 | 60 |
| 20491-52-24T | M52X2 | 40 | 24 | 42 | 038.0X2.5 | 109.4 | 5.5 | 104 | 60 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 20492-XX-XX.
