HYDRAULIC 20418D-R5 METRIC FEMALE 24° CONE O-RING L.T.
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20418D-R5 METRIC FEMALE 24° CONE O-RING L.T.
Product Detail

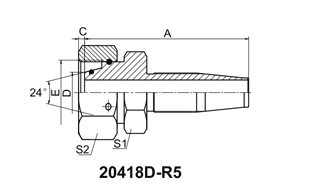

HYDRAULIC 20418D-R5 METRIC FEMALE 24° CONE O-RING L.T.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | TUBEO.D. | C | S1 | S2 | ||
| 20418D-14-04(R5) | M14X1.5 | 5 | 04 | 8 | 1.4 | 12 | 17 |
| 20418D-16-05(R5) | M16X1.5 | 6 | 05 | 10 | 2.1 | 14 | 19 |
| 20418D-18-06(R5) | M18X1.5 | 8 | 06 | 12 | 1.8 | 17 | 22 |
| 20418D-22-08(R5) | M22X1.5 | 11 | 08 | 15 | 3 | 19 | 27 |
| 20418D-26-10(R5) | M26X1.5 | 13 | 10 | 18 | 2.1 | 27 | 32 |
| 20418D-30-12(R5) | M30X2 | 16 | 12 | 22 | 3.8 | 30 | 36 |
| 20418D-36-16(R5) | M36X2 | 22 | 16 | 28 | 4.5 | 36 | 41 |
| 20418D-45-16(R5) | M45X2 | 22 | 16 | 35 | 4 | 41 | 50 |
| 20418D-45-20(R5) | M45X2 | 28 | 20 | 35 | 4 | 41 | 50 |
| 20418D-52-24(R5) | M52X2 | 35 | 24 | 42 | 4 | 50 | 60 |
