HYDRAULIC 20418-R5T METRIC FEMALE 24° CONE SEAT LIGHT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20418-R5T METRIC FEMALE 24° CONE SEAT LIGHT
Product Detail

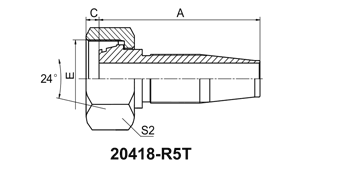

HYDRAULIC 20418-R5T METRIC FEMALE 24° CONE SEAT LIGHT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | C | S2 | ||
| 20418-14-05(R5T) | M14X1.5 | 5 | 04 | 1.4 | 17 |
| 20418-16-05(R5T) | M16X1.5 | 6 | 05 | 2.1 | 19 |
| 20418-18-06(R5T) | M18X1.5 | 8 | 06 | 1.8 | 22 |
| 20418-22-08(R5T) | M22X1.5 | 11 | 08 | 3 | 27 |
| 20418-26-10(R5T) | M26X1.5 | 13 | 10 | 2.1 | 32 |
| 20418-30-12(R5T) | M30X2 | 16 | 12 | 3.8 | 36 |
| 20418-36-16(R5T) | M36X2 | 22 | 16 | 4.5 | 46 |
| 20418-45-16(R5T) | M45X2 | 22 | 16 | 4 | 55 |
| 20418-45-20(R5T) | M45X2 | 28 | 20 | 4 | 55 |
| 20418-52-24(R5T) | M52X2 | 35 | 24 | 4 | 60 |
