AMERICA JIC ADAPTOR 1JO MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

Send Inquiry

Product Description

America JIC adaptor for use with :Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, WaterThe male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Product Detail

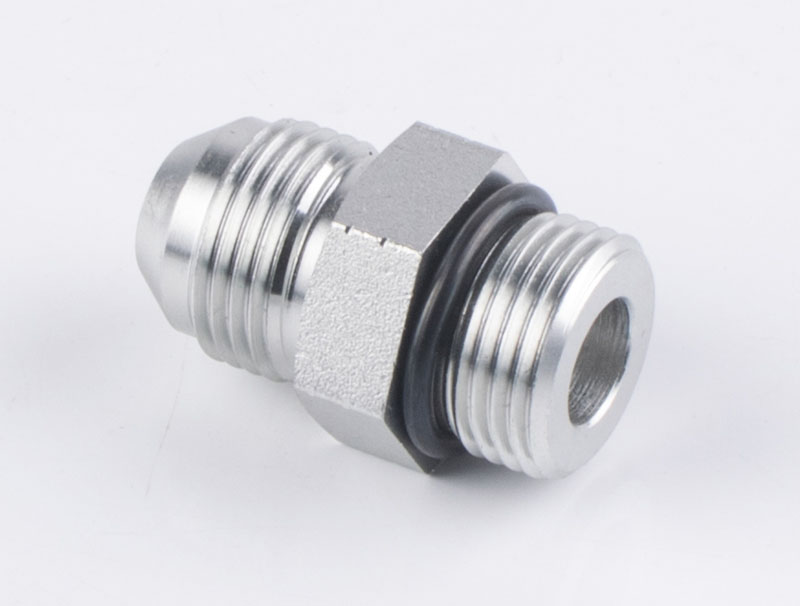

AMERICAJIC ADAPTOR 1JO MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

A tube America JIC adaptor sits flush against the flat face of the fitting so you can slide the tubing and fitting sideways to disconnect in cramped spaces. Fittings are also known as zero-clearance fittings. To install, weld a tube adapter to the tubing with a brazing ring, then mate the tube adapter to the fitting and screw on the nut. As the nut is tightened, the tube adapter compresses the O-ring, creating a strong seal.


The O-ring boss male will mate with an O-ring boss female only. The female is generally found on ports. The male has straight threads, a sealing face and an O-ring. The female has straight threads and a sealing face. The seal is made at the O-ring on the male and the sealing face on the female.

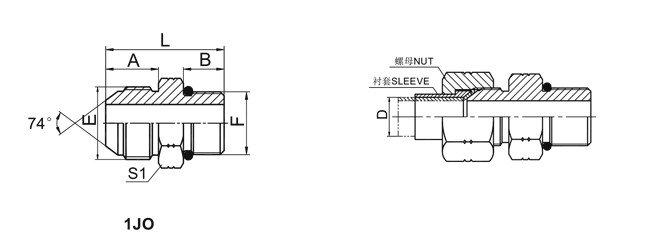

PART NO. 		  THREAD  O-RING    DIMENSIONS
E F F END A B L S1
1JO-04-02 7/16"X20 5/16"X24 O902 14 7.54 27.5 14
1JO-04-03 7/16"X20 3/8"X24 O903 14 7.54 27.5 14
1JO-04 7/16"X20 7/16"X20 O904 14 9.14 29 14
1JO-04-05 7/16"X20 1/2"X20 O905 14 9.14 29 17
1JO-04-06 7/16"X20 9/16"X18 O906 14 9.93 30 17
1JO-04-08 7/16"X20 3/4"X16 O908 14 11.13 33 22
1JO-05 1/2"X20 1/2"X20 O905 14 9.14 29 17
1JO-05-04 1/2"X20 7/16"X20 O904 14 9.14 29 14
1JO-05-06 1/2"X20 9/16"X18 O906 14 9.93 30 17
1JO-05-08 1/2"X20 3/4"X16 O908 14 11.13 33 22
1JO-06 9/16"X18 9/16"X18 O906 14.1 9.93 30 17
1JO-06-04 9/16"X18 7/16"X20 O904 14.1 9.14 29 17
1JO-06-05 9/16"X18 1/2"X20 O905 14.1 9.14 29.5 17
1JO-06-08 9/16"X18 3/4"X16 O908 14.1 11.13 33 22
1JO-06-10 9/16"X18 7/8"X14 O910 14.1 12.7 37 27
1JO-06-12 9/16"X18 1.1/16"X12 O912 14.1 15.09 40 32
1JO-08 3/4"X16 3/4"X16 O908 16.7 11.13 36 22
1JO-08-04 3/4"X16 7/16"X20 O904 16.7 9.14 34 22
1JO-08-06 3/4"X16 9/16"X18 O906 16.7 9.93 35 22
1JO-08-10 3/4"X16 7/8"X14 O910 16.7 12.7 40 27
1JO-08-12 3/4"X16 1.1/16"X12 O912 16.7 15.09 43 32
1JO-08-14 3/4"X16 1.3/16"X12 O914 16.7 15.09 43 36
1JO-10 7/8"X14 7/8"X14 O910 19.3 12.7 42.5 27
1JO-10-08 7/8"X14 3/4"X16 O908 19.3 11.13 39 24
1JO-10-12 7/8"X14 1.1/16"X12 O912 19.3 15.09 45.5 32
1JO-10-14 7/8"X14 1.3/16"X12 O914 19.3 15.09 45.5 36
1JO-12 1.1/16"X12 1.1/16"X12 O912 21.9 15.09 48 32
1JO-12-08 1.1/16"X12 3/4"X16 O908 21.9 11.13 43 30
1JO-12-10 1.1/16"X12 7/8"X14 O910 21.9 12.7 45 30
1JO-12-14 1.1/16"X12 1.3/16"X12 O914 21.9 15.09 48 36
1JO-12-16 1.1/16"X12 1.5/16"X12 O916 21.9 15.09 48 38
1JO-14 1.3/16"X12 1.3/16"X12 O914 22.6 15.09 48.5 36
1JO-14-12 1.3/16"X12 1.1/16"X12 O912 22.6 15.09 48.5 32
1JO-14-16 1.3/16"X12 1.5/16"X12 O916 22.6 15.09 50.5 38
1JO-16 1.5/16"X12 1.5/16"X12 O916 23.1 15.09 49 38
1JO-16-12 1.5/16"X12 1.1/16"X12 O912 23.1 15.09 49 36
1JO-16-14 1.5/16"X12 1.3/16"X12 O914 23.1 15.09 49 36
1JO-16-20 1.5/16"X12 1.5/8"X12 O920 23.1 15.09 53 50
1JO-20 1.5/8"X12 1.5/8"X12 O920 24.3 15.09 54.5 50
1JO-20-16 1.5/8"X12 1.5/16"X12 O916 24.3 15.09 52.5 46
1JO-20-24 1.5/8"X12 1.7/8"X12 O924 24.3 15.09 54.5 55
1JO-24 1.7/8"X12 1.7/8"X12 O924 27.5 15.09 57.5 55
1JO-24-20 1.7/8"X12 1.5/8"X12 O920 27.5 15.09 57.5 50
1JO-24-32 1.7/8"X12 2.1/2"X12 O932 27.5 15.09 59.5 70
1JO-32 2.1/2"X12 2.1/2"X12 O932 33.9 15.09 66 70

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests



Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.    Delivery:As general,we can guarantee the delivery within one month.

2.    Port of loading: Ningbo or Shanghai

3.    Samples Fee: We can offord the samples fee.
