HYDRAULIC FITTING 1JM JIC MALE 37° CONE / METRIC MALE 60° SEAT

HYDRAULIC FITTING 1JM JIC MALE 37° CONE / METRIC MALE 60° SEAT

Metric 60° Cone

The male connector has a 60° recessed cone and a straight thread; the female has a straight thread as well, and a globeseal seat. The seal forms between the recessed cone on the male and the tapered nose of the female. The threads of both halves mesh to form a strong mechanical bond. This connection is common in hydraulic systems

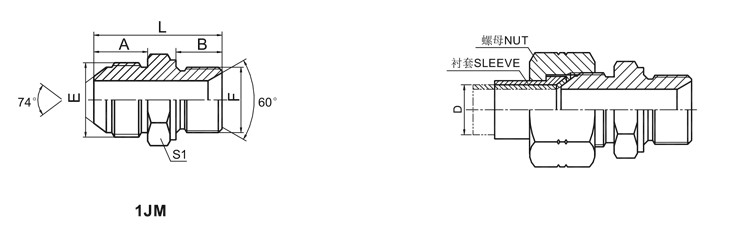

PART NO.																THREAD																																				DIMENSIONS
																E																F																				A							B								L								S1
1JM-04-10																7/16"X20																M10X1																				14							8								29								14
1JM-04-12																7/16"X20																M12X1.5																				14							10								31								17
1JM-04-14																7/16"X20																M14X1.5																				14							11								32								19
1JM-05-10																1/2"X20																M10X1																				14							8								28								14
1JM-05-12																1/2"X20																M12X1.5																				14							10								30								17
1JM-05-14																1/2"X20																M14X1.5																				14							11								32								19
1JM-06-12																9/16"X18																M12X1.5																				14.1							10								31								17
1JM-06-14																9/16"X18																M14X1.5																				14.1							11								33								19
1JM-06-16																9/16"X18																M16X1.5																				14.1							12								35								22
1JM-06-18																9/16"X18																M18X1.5																				14.1							12								34								24
1JM-08-16																3/4"X16																M16X1.5																				16.7							12								37.5								22
1JM-08-18																3/4"X16																M18X1.5																				16.7							12								36.5								24
1JM-08-20																3/4"X16																M20X1.5																				16.7							14								41								27
1JM-08-22																3/4"X16																M22X1.5																				16.7							14								41								27
1JM-10-20																7/8"X14																M20X1.5																				19.3							14								44								27
1JM-10-22																7/8"X14																M22X1.5																				19.3							14								43.5								27
1JM-10-26																7/8"X14																M26X1.5																				19.3							16								47.5								32
1JM-12-20																1.1/16"X12																M20X1.5																				21.9							14								47								30
1JM-12-22																1.1/16"X12																M22X1.5																				21.9							14								47								30
1JM-12-26																1.1/16"X12																M26X1.5																				21.9							16								50								32

Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.     Delivery:As general,we can guarantee the delivery within one month.

2.     Port of loading: Ningbo or Shanghai

3.     Samples Fee: We can offord the samples fee.
