AMERICA ELBOW ADAPTOR JIC 1J4 MALE 37°CONE
Hydraulic fittings come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.
America elbow adaptorJIC (37° Flare) The Society of Automotive Engineers (SAE) specifies a 37° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37° flare male will mate with a JIC female only.* The JIC male has straight threads and a 37° flare seat. The JIC female has straight threads and a 37° flare seat. The seal is made on the 37° flare seat. Some sizes have the same threads as the SAE 45° flare. Carefully measure the seat angle to differentiate.

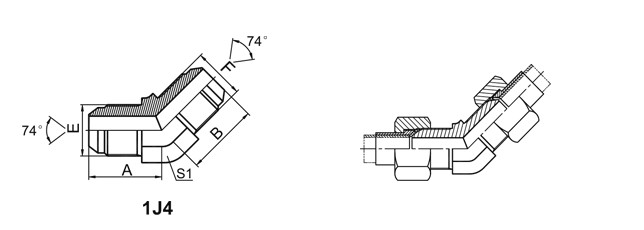

| PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||
| E | F | A | B | S1 | |||||||||||||||||||||||||||||||||||||||||||
| 1J4-04 | 7/16"X20 | 7/16"X20 | 21.5 | 21.5 | 11 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-05 | 1/2"X20 | 1/2"X20 | 23 | 23 | 14 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-06 | 9/16"X18 | 9/16"X18 | 22.8 | 22.8 | 14 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-08 | 3/4"X16 | 3/4"X16 | 26.8 | 26.8 | 19 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-10 | 7/8"X14 | 7/8"X14 | 31 | 31 | 22 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-12 | 1.1/16"X12 | 1.1/16"X12 | 35.5 | 35.5 | 27 | ||||||||||||||||||||||||||||||||||||||||||
| 1J4-16 | 1.5/16"X12 | 1.5/16"X12 | 38.5 | 38.5 | 33 | ||||||||||||||||||||||||||||||||||||||||||
Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
Product Details
High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
