HYDRAULIC 1FG4-OG 45° ELBOW ORFS MALE O-RING / BSP MALE O-RING
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1FG4-OG 45° ELBOW ORFS MALE O-RING / BSP MALE O-RING
Product Detail

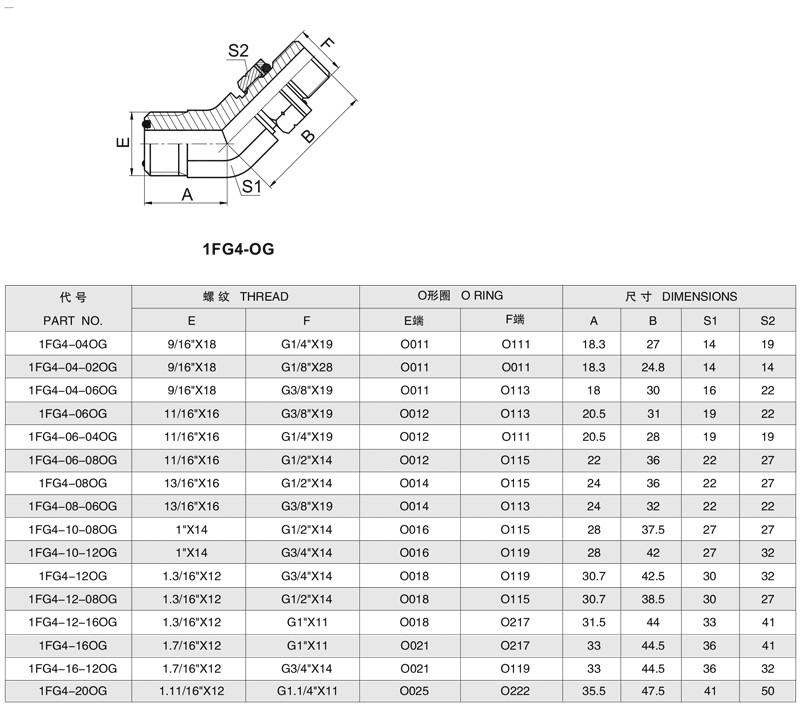

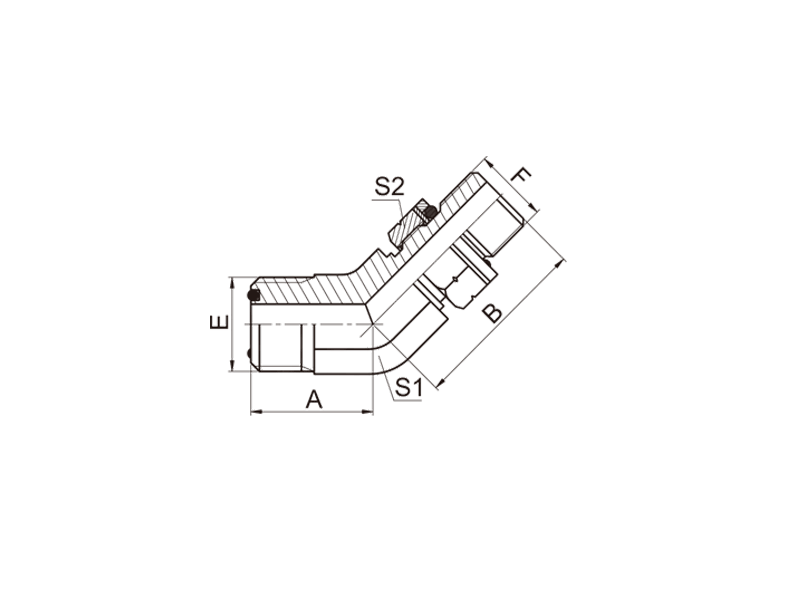

HYDRAULIC 1FG4-OG 45° ELBOW ORFS MALE O-RING / BSP MALE O-RING
注：F端与DIN 3852 油口相配。 Note: F end is connected with DIN 3852 port.

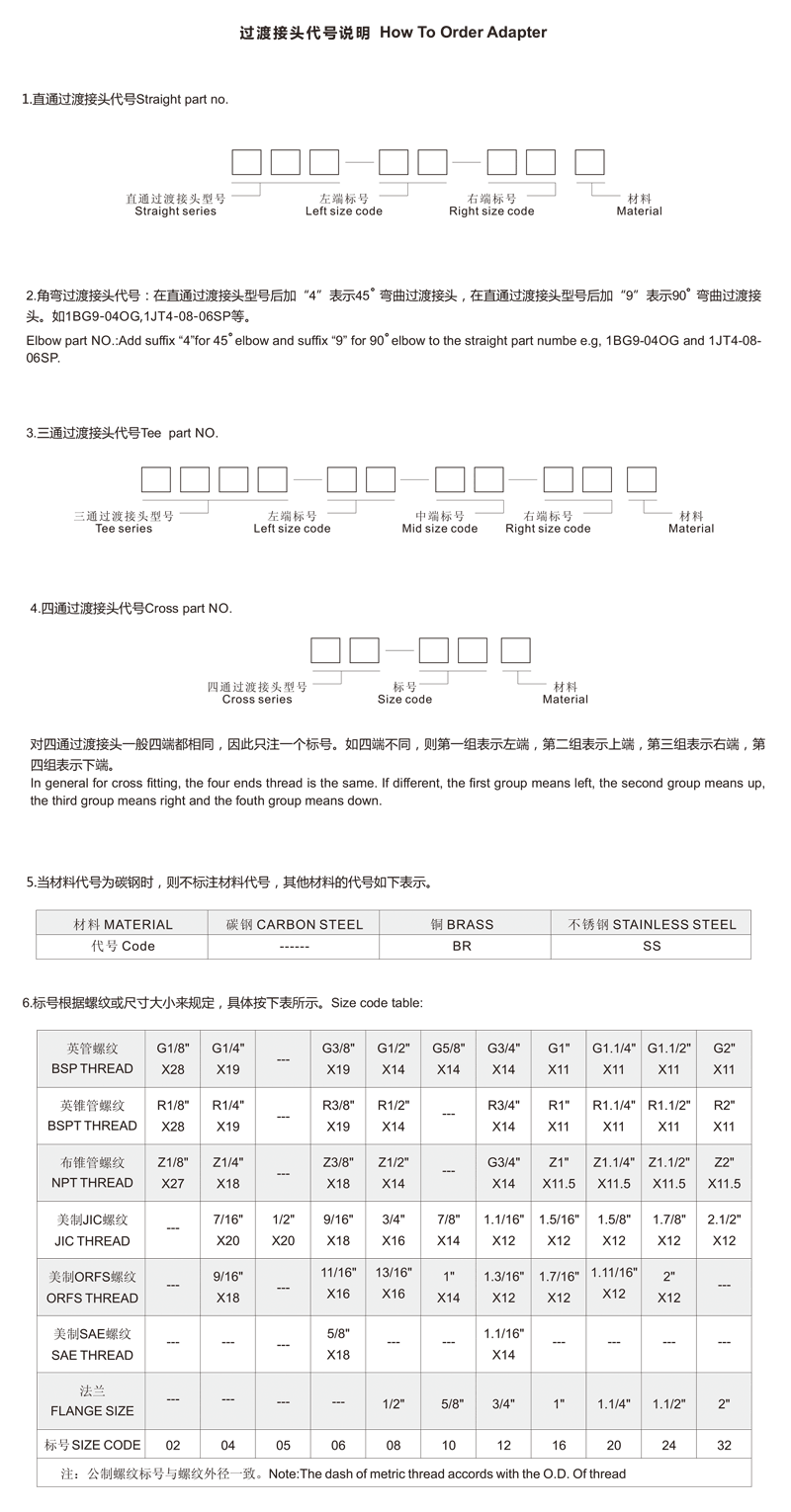

Adapters Code description
标注示例
1BG直通过渡接头系列,左端接头螺纹为G1/2"X14,右端接头螺纹为G3/4"×14,用碳钢作的接头,代号为1BG-08-12,如用不锈钢
制作,代号为1BG-08-12SS
AJJN三通过渡接头系列,左端接头螺纹为9/16"X18右端接头螺纹为Z12"X14,用碳钢制作的接头,代号为AJJN06-06-08。
Example:
1BG left end thread is G1/2" X14, and right end thread is G3/4"X14, the fitting number is 1BG-08-12 If made of stainless steel，
the fitting number is 1BG-08-12SS
If AJJN left end thread is 9/16X18 and right end thread is z1/2 X14, the fitting number is AJJN-06-06-08
