HYDRAULIC 1BFL BSP MALE 60°CONE SEAT/ SAE FLANGE 3000PSI
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1BFL BSP MALE 60°CONE SEAT/ SAE FLANGE 3000PSI
Product Detail

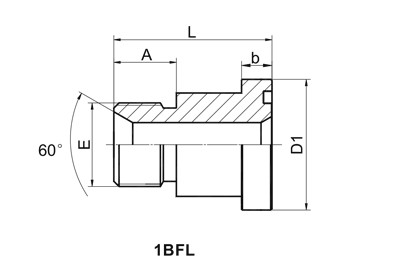

HYDRAULIC 1BFL BSP MALE 60°CONE SEAT/ SAE FLANGE 3000PSI
| PART NO. | THREAD | DIMENSIONS | ||||
| E | FLANGE SIZE | O RING | b | D1 | L | |
| 1BFL-08 | G1/2"X14 | 1/2" | O210 | 6.73 | 30.2 | 43 |
| 1BFL-12 | G3/4"X14 | 3/4" | O214 | 6.73 | 38.1 | 47.5 |
| 1BFL-16 | G1"X11 | 1" | O219 | 8 | 44.4 | 51 |
| 1BFL-20 | G1.1/4"X11 | 1.1/4" | O222 | 8 | 50.8 | 51 |
| 1BFL-24 | G1.1/2"X11 | 1.1/2" | O225 | 8 | 60.3 | 55 |
