CAPTIVE SEAL FITTING BSP MALE 60° SEAT 1B-2WD

Send Inquiry

Product Description

we supply hydraulic captive seal fitting not only standard but also comply with customers drawings. we devoted ourselves covering most of Europe and the Americas market.These hydraulic fitting Products are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.

Product Detail

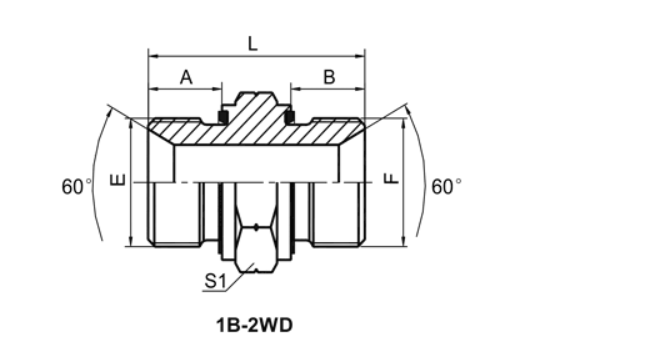

CAPTIVE SEAL FITTING BSP MALE 60° SEAT 1B-2WD

International Connections

British Standard Pipe

British connections are available in two categories: British Standard Pipe Parallel (BSPP), and British Standard Pipe Tapered (BSPT).

British Standard Pipe Parallel (BSPP)

The male end has a 300 seat, which tapered nose of the female swivel makes the seal with.

Note: Although the male end is comparable to the American National Pipe Straight Mechanical (NPSM) male, they not interchangeable, due to their different thread pitches.

PART NO.	THREAD		CAPTIVE		DIMENSIONS
	E	F	E END	F END	A	B	L	S1
1B－02/2WD	G1/8"X28	G1/8"X28	WD-B02	WD-B02	8	8	25	14
1B-02-04/2WD	G1/8"X28	G1/4"X19	WD-B02	WD-B04	8	12	29.5	19
1B－04/2WD	G1/4"X19	G1/4"X19	WD-B04	WD-B04	12	12	34	19
1B－04-06/2WD	G1/4"X19	G3/8"X19	WD-B04	WD-B06	12	12	36.5	22
1B－06/2WD	G3/8"X19	G3/8"X19	WD-B06	WD-B06	12	12	37	22
1B－06-08/2WD	G3/8"X19	G1/2"X14	WD-B06	WD-B08	12	14	41.5	27
1B－08/2WD	G1/2"X14	G1/2"X14	WD-B08	WD-B08	14	14	44	27
1B－08-12/2WD	G1/2"X14	G3/4"X14	WD-B08	WD-B12	14	16	46	32
1B－12/2WD	G3/4"X14	G3/4"X14	WD-B12	WD-B12	16	16	47	32
1B－12-16/2WD	G3/4"X14	G1"X11	WD-B12	WD-B16	16	18	52	41
1B－16/2WD	G1"X11	G1"X11	WD-B16	WD-B16	18	18	55	41
1B－16-20/2WD	G1"X11	G1.1/4"X11	WD-B16	WD-B20	18	20	57	50
1B－20/2WD	G1.1/4"X11	G1.1/4"X11	WD-B20	WD-B20	20	20	61	50
1B－20-24/2WD	G1.1/4"X11	G1.1/2"X11	WD-B20	WD-B24	20	22	63	55
1B－24/2WD	G1.1/2"X11	G1.1/2"X11	WD-B24	WD-B24	22	22	65	55
1B－24-32/2WD	G1.1/2"X11	G2"X11	WD-B24	WD-B32	22	20	66	75
1B－32/2WD	G2"X11	G2"X11	WD-B32	WD-B32	20	20	65	75

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1. Delivery:As general,we can guarantee the delivery within one month.

2. Port of loading: Ningbo or Shanghai

3. Samples Fee: We can offord the samples fee.
