Product Description

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 19611 JIS BSPP MALE 60° CONE SEAT

Product Detail

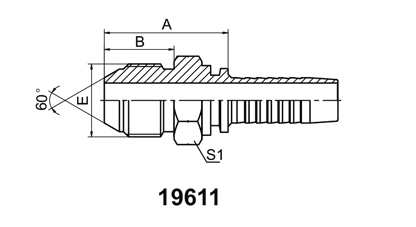

HYDRAULIC 19611 JIS BSPP MALE 60° CONE SEAT



 PART NO.  THREAD E  HOSE BORE  DIMENSIONS
DN DASH A B S1
19611-04-04 G1/4"X19 6 04 29 16 17
19611-06-06 G3/8"X19 10 06 31 18 19
19611-08-08 G1/2"X14 12 08 35.5 20 22
19611-12-12 G3/4"X14 20 12 41 22 30
19611-16-16 G1"X11 25 16 45.5 24 36

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 19612-XX-XX.
