HYDRAULIC 16718-R5 JIC MALE 74° CONE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 16718-R5 JIC MALE 74° CONE
Product Detail

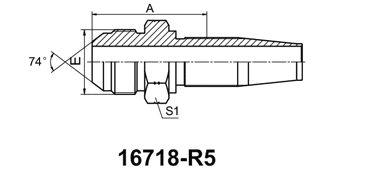

HYDRAULIC 16718-R5 JIC MALE 74° CONE
| PART NO. | E THREAD E | HOSE DASH | DIMENSIONS | |
| A | S1 | |||
| 16718-04-04(R5) | 7/16"X20 | 04 | 29 | 12 |
| 16718-06-05(R5) | 9/16"X18 | 05 | 31 | 17 |
| 16718-06-06(R5) | 9/16"X18 | 06 | 32 | 17 |
| 16718-08-06(R5) | 3/4"X16 | 06 | 34.7 | 22 |
| 16718-08-08(R5) | 3/4 "X16 | 08 | 38 | 22 |
| 16718-10-10(R5) | 7/8"X14 | 10 | 40.5 | 24 |
| 16718-12-12(R5) | 1.1/16"X12 | 12 | 45.5 | 30 |
| 16718-16-16(R5) | 1.5/16"X12 | 16 | 44 | 36 |
| 16718-20-20(R5) | 1.5/8"X12 | 20 | 49.5 | 46 |
| 16718-24-24(R5) | 1.7/8"X12 | 24 | 52.5 | 50 |
