HYDRAULIC 14211-RW ORFS MALE O-RING SEAL (ISO 8434-3---SAE J1453)
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 14211-RW ORFS MALE O-RING SEAL (ISO 8434-3---SAE J1453)
Product Detail

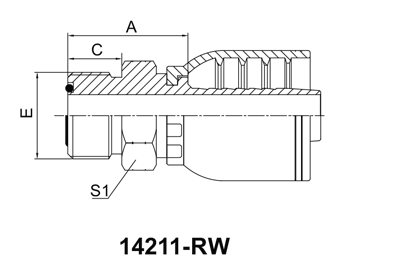

HYDRAULIC 14211-RW ORFS MALE O-RING SEAL (ISO 8434-3---SAE J1453)
| PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | |||
| DN | DASH | A | C | S1 | |||
| 14211-04-04RW | 9/16"X18 | 6 | 04 | O011 | 22.3 | 9.8 | 17 |
| 14211-06-04RW | 11/16"X16 | 6 | 04 | O012 | 24 | 11.2 | 19 |
| 14211-06-06RW | 11/16"X16 | 10 | 06 | O012 | 24 | 11.2 | 19 |
| 14211-08-06RW | 13/16"X16 | 10 | 06 | O014 | 27.5 | 12.8 | 22 |
| 14211-08-08RW | 13/16"X16 | 12 | 08 | O014 | 28.5 | 12.8 | 22 |
| 14211-08-1ORW | 13/16"X16 | 16 | 10 | O014 | 28.5 | 128 | 22 |
| 14211-10-08RW | 1"X14 | 12 | 08 | O016 | 32.5 | 15.5 | 27 |
| 14211-10-10RW | 1"X14 | 16 | 10 | O016 | 34 | 15.5 | 27 |
| 14211-12-08RW | 1.3/16"X12 | 12 | 08 | O018 | 35.5 | 17 | 32 |
| 14211-12-10RW | 1.3/16"X12 | 16 | 10 | O018 | 36.5 | 17 | 32 |
| 14211-12-12RW | 1.3/16"X12 | 20 | 12 | O018 | 36.5 | 17 | 32 |
| 14211-16-12RW | 1.7/16"X12 | 20 | 12 | O021 | 37 | 17.5 | 38 |
| 14211-16-16RW | 1.7/16"X12 | 25 | 16 | O021 | 38.5 | 17.5 | 38 |
| 14211-20-20RW | 1.11/16"X12 | 32 | 20 | O025 | 41.5 | 17.5 | 46 |
| 14211-24-24RW | 2"X12 | 40 | 24 | O029 | 43.5 | 17.5 | 55 |
NOTE:
1.For use with braided hoses.
2.If with spiral hoses,hose fitting series number is 14212-XX-XXRW.
