HYDRAULIC 13013-SP BSPT MALE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 13013-SP BSPT MALE
Product Detail
HYDRAULIC 13013-SP BSPT MALE

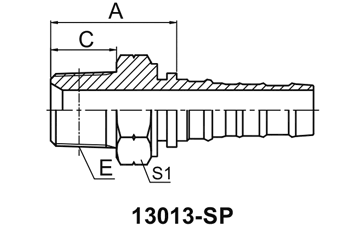

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 13013-12-12SP | R3/4"X14 | 20 | 12 | 38 | 20 | 30 |
| 13013-16-16SP | R1"X11 | 25 | 16 | 45.9 | 25.5 | 38 |
| 13013-20-20SP | R1.1/4"X11 | 32 | 20 | 51.3 | 26.5 | 46 |
| 13013-24-24SP | R1.1/2"X11 | 40 | 24 | 53.2 | 26.5 | 50 |
| 13013-32-32SP | R2"X11 | 50 | 32 | 58.5 | 30 | 65 |
