HYDRAULIC 12613 BSP MALE 60° CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 12613 BSP MALE 60° CONE SEAT
Product Detail

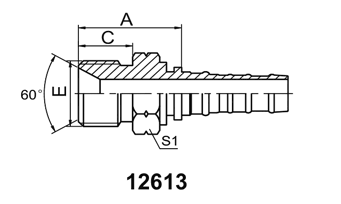

HYDRAULIC 12613 BSP MALE 60° CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 12613-12-12 | G3/4"X14 | 20 | 12 | 37.5 | 18.5 | 30 |
| 12613-16-16 | G1"X11 | 25 | 16 | 41 | 20.5 | 36 |
| 12613-20-20 | G1.1/4-X11 | 32 | 20 | 45.3 | 20.5 | 46 |
| 12613-24-24 | G1.1/2"X11 | 40 | 24 | 49.7 | 23 | 50 |
| 12613-32-32 | G2"X11 | 50 | 32 | 52 | 25.5 | 60 |
