HYDRAULIC 12611A-PO BSP MALE 60°CONE SEAT
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 12611A-PO BSP MALE 60°CONE SEAT
Product Detail

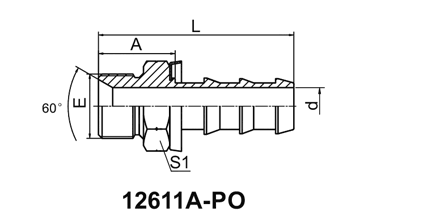

HYDRAULIC 12611A-PO BSP MALE 60°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | L | S1 | d | ||
| 12611A-04-04PO | G1/4"X19 | 6 | 04 | 20 | 38 | 19 | 4.3 |
| 12611A-06-06PO | G3/8"X19 | 10 | 06 | 24 | 45.5 | 22 | 7.5 |
| 12611A-08-08PO | G1/2"X14 | 12 | 08 | 28.5 | 54 | 27 | 9.9 |
| 12611A-12-12PO | G3/4"X14 | 20 | 12 | 32 | 69.5 | 32 | 15.5 |
