HYDRAULIC 12611A BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 12611A BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL
Product Detail

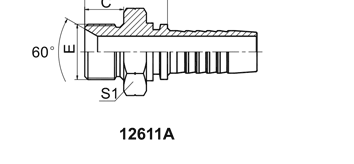

HYDRAULIC 12611A BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | c | S1 | ||
| 12611A-02-03 | G1/8"X28 | 5 | 03 | 22 | 10 | 14 |
| 12611A-04-04 | G1/4"X19 | 6 | 04 | 24.5 | 12 | 19 |
| 12611A-04-05 | G1/4-X19 | 8 | 05 | 24.5 | 12 | 19 |
| 12611A-06-05 | G3/8"X19 | 8 | 05 | 26 | 13.5 | 22 |
| 12611A-06-06 | G3/8"X19 | 10 | 06 | 28 | 13.5 | 22 |
| 12611A-06-08 | G3/8"X19 | 12 | 08 | 28.5 | 13.5 | 22 |
| 12611A-08-06 | G1/2"X14 | 10 | 06 | 33 | 16 | 27 |
| 12611A-08-08 | G1/2-X14 | 12 | 08 | 33.5 | 16 | 27 |
| 12611A-08-10 | G1/2"X14 | 16 | 10 | 32 | 16 | 27 |
| 12611A-10-08 | G5/8"X14 | 12 | 08 | 35 | 17.5 | 30 |
| 12611A-10-10 | G5/8-X14 | 16 | 10 | 36 | 17.5 | 30 |
| 12611A-12-08 | G3/4"X14 | 12 | 08 | 36.5 | 18.5 | 32 |
| 12611A-12-10 | G3/4"X14 | 16 | 10 | 37.5 | 18.5 | 32 |
| 12611A-12-12 | G3/4"X14 | 20 | 12 | 37.5 | 18.5 | 32 |
| 12611A-16-12 | G1"X11 | 20 | 12 | 42.5 | 20.5 | 41 |
| 12611A-16-16 | G1"X11 | 25 | 16 | 43.5 | 20.5 | 41 |
| 12611A-20-16 | G1.1/4"X11 | 25 | 16 | 45.5 | 20.5 | 50 |
| 12611A-20-20 | G1.1/4"X11 | 32 | 20 | 46.5 | 20.5 | 50 |
| 12611A-24-24 | G1.1/2UX11 | 40 | 24 | 49 | 23 | 55 |
| 12611A-32-32 | G2"X11 | 50 | 32 | 54.5 | 25.5 | 70 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 12612A-XX-XX.
