HYDRAULIC 12211 BSP MALE O-RING SEAL
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 12211 BSP MALE O-RING SEAL
Product Detail

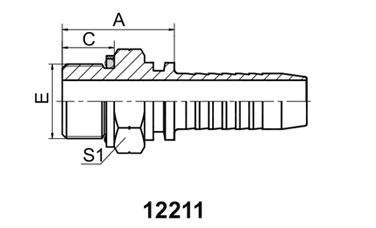

HYDRAULIC 12211 BSP MALE O-RING SEAL
| PART NO. | THREAD E | HOSE BORE | ORING | DIMENSIONS | |||
| DN | DASH | A | C | S1 | |||
| 12211-04-04 | G1/4"X19 | 6 | 04 | 0111 | 23.5 | 11 | 19 |
| 12211-04-06 | G1/4"X19 | 10 | 06 | 0111 | 23.5 | 11 | 19 |
| 12211-06-06 | G3/8"X19 | 10 | 06 | 0113 | 26.5 | 12 | 22 |
| 12211-08-04 | G1/2"X14 | 6 | 04 | 0115 | 33.5 | 14 | 27 |
| 12211-08-06 | G1/2"X14 | 10 | 06 | 0115 | 33.5 | 14 | 27 |
| 12211-08-08 | G1/2"X14 | 12 | 08 | 0115 | 34 | 14 | 27 |
| 12211-10-10 | G5/8"X14 | 16 | 10 | 0910 | 36 | 15.5 | 30 |
| 12211-12-10 | G3/4"X14 | 16 | 10 | 0119 | 33.5 | 15.5 | 32 |
| 12211-12-12 | G3/4-X14 | 20 | 12 | 0119 | 38 | 15.5 | 32 |
| 12211-12-16 | G3/4"X14 | 25 | 16 | 0119 | 36 | 15.5 | 32 |
| 12211-16-16 | G1"X11 | 25 | 16 | 0217 | 44.5 | 18.5 | 41 |
| 12211-20-20 | G1.1/4"X11 | 32 | 20 | 0222 | 46 | 20 | 50 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 12212-XX-XX.
