HYDRAULIC 00402 FERRULE FOR SAE 100 R9AT-R12,DIN EN 856-4SP/04-16 HOSE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 00402 FERRULE FOR SAE 100 R9AT-R12,DIN EN 856-4SP/04-16 HOSE
Product Detail

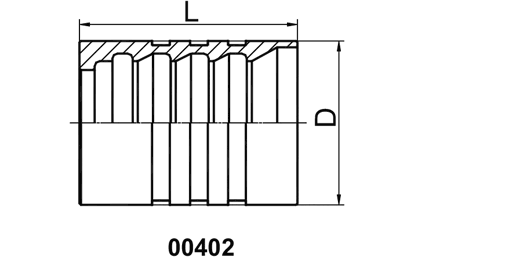

HYDRAULIC 00402 FERRULE FOR SAE 100 R9AT-R12,DIN EN 856-4SP/04-16 HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00402-04 | 6 | 04 | 21.5 | 30 |
| 00402-06 | 10 | 06 | 26 | 33 |
| 00402-08 | 12 | 08 | 30 | 34 |
| 00402-10 | 16 | 10 | 33 | 39 |
| 00402-12 | 20 | 12 | 38 | 40 |
| 00402-16 | 25 | 16 | 46 | 51 |
| 00402-20 | 32 | 20 | 55 | 60 |
| 00402-24 | 40 | 24 | 63 | 70 |
| 00402-32 | 50 | 32 | 77 | 72 |
