HYDRAULIC 00208 FERRULE FOR SAE 100 R2A HOSE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 00208 FERRULE FOR SAE 100 R2A HOSE
Product Detail

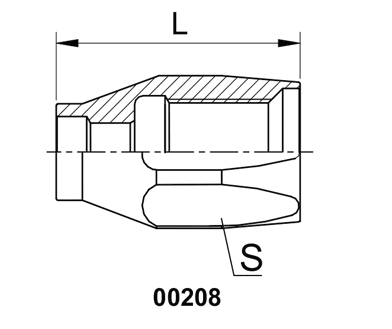

HYDRAULIC 00208 FERRULE FOR SAE 100 R2A HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | L | S | |
| 00208-04 | 5 | 04 | 44 | 22 |
| 00208-06 | 8 | 06 | 49 | 27 |
| 00208-08 | 11 | 08 | 51 | 30 |
| 00208-10 | 13 | 10 | 53.5 | 32 |
| 00208-12 | 16 | 12 | 63 | 38 |
| 00208-16 | 22 | 16 | 75 | 46 |
| 00208-20 | 28 | 20 | 87 | 60 |
