HYDRAULIC 00110-A FERRULE FOR SAE100R1AT/DIN20022 1SN HOSE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 00110-A FERRULE FOR SAE100R1AT/DIN20022 1SN HOSE
Product Detail

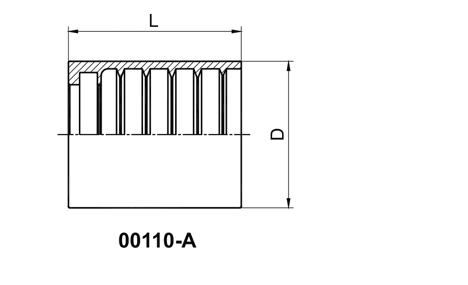

HYDRAULIC 00110-A FERRULE FOR SAE100R1AT/DIN20022 1SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00110-03A | 5 | 03 | 23 |
| 00110-04A | 6 | 04 | 30.5 |
| 00110-05A | 8 | 05 | 30 |
| 00110-06A | 10 | 06 | 32 |
| 00110-08A | 12 | 08 | 34 |
| 00110-10A | 16 | 10 | 37 |
| 00110-12A | 20 | 12 | 42 |
| 00110-16A | 25 | 16 | 51 |
