HYDRAULIC 00100 FERRULE FOR SAE100R1A/DIN20022 1ST HOSE
Product Description
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 00100 FERRULE FOR SAE100R1A/DIN20022 1ST HOSE
Product Detail

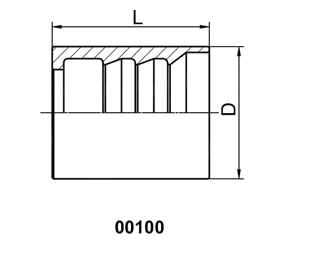

HYDRAULIC 00100 FERRULE FOR SAE100R1A/DIN20022 1ST HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00100-03 | 5 | 03 | 17.5 | 27 |
| 00100-04 | 6 | 04 | 20.6 | 30 |
| 00100-05 | 8 | 05 | 21.5 | 31 |
| 00100-06 | 10 | 06 | 24 | 32 |
| 00100-08 | 12 | 08 | 28.5 | 34 |
| 00100-10 | 16 | 10 | 32 | 37 |
| 00100-12 | 20 | 12 | 36 | 43 |
| 00100-16 | 25 | 16 | 43 | 50 |
| 00100-20 | 32 | 20 | 50.5 | 59 |
| 00100-24 | 40 | 24 | 57 | 74 |
| 00100-32 | 50 | 32 | 70.6 | 78 |
